Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width

Name: Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width
Brand: SHARE
Price: 0.2 USD

Buy cheap Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width product

Brand Name : SHARE

Model Number : 10GG-74GG

Certification : SHARE

Place of Origin : CHINA

MOQ : 100meters

Price : USD0.2-USD3.5

Payment Terms : L/C, L/C, T/T, Western Union, MoneyGram

Supply Ability : 1,000meters/day

Delivery Time : 5-30days

Packaging Details : Carton + PP Bags

Material : Monofilament Polymiade Yarn

Mesh Type : Monofilament Woven Filter Mesh

Milling Mesh Type : GG Flour Mesh

Mesh Count : 11tpi-76tpi

Thread Diameter : 120um-550um

Mesh Opening : 212um-1800um

Width : 136cm

Color : White

Package : Carton

name : Nylon Mesh Fabric

Contact Now

Abrasion-resistance Polymiade Flour Milling Mesh

1. Characteristics/Properties of Polyamide Yarn

Very Good High Temperature Properties

Excellent toughness and overall mechanical properties

Very good resistance to many fluids and chemicals

Low permeability to many fluids and gases including air and fuel (non-alcohol types)

2. Introduction of Polyamide Flour Milling Mesh

1) Advantages of Polyamide Flour Milling Mesh

High throughput

High yield

Long service life

High reliability

Wide product range

2) Polymiade Flour Milling Mesh includes PA-GG Series, PA-XX Series and PA-XXX Series

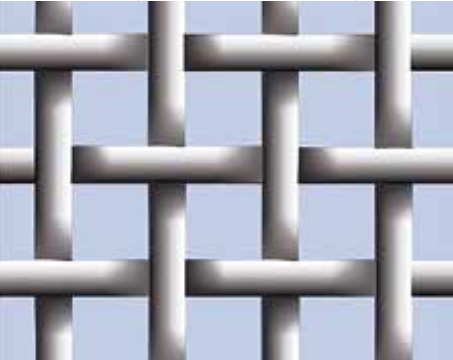

PA-GG Fabric Construction

Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width

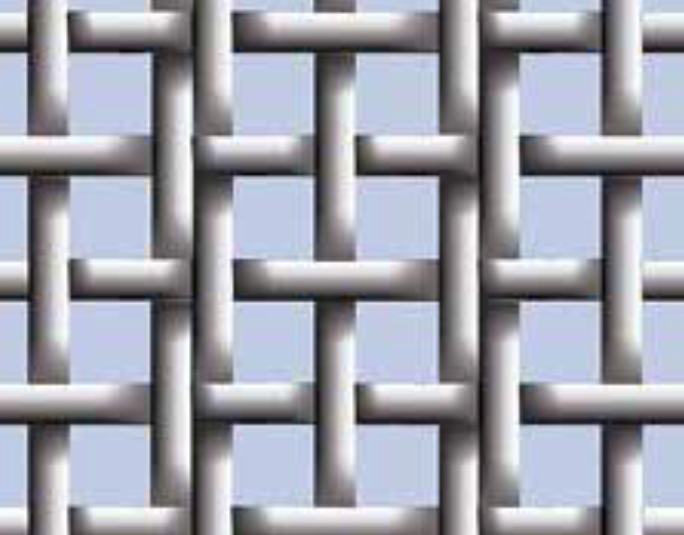

PA-XX Fabric Construction

Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width

PA-XXX Fabric Construction

Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width

3. Datesheets for PA-GG Series, PA-XX Series and PA-XXX Series

PA-GG Flour Milling Mesh Data

Fabric No.	Mest Count		Thread Diameter (um)	Mesh Opening (um)	Open Area (%)	Weight(gsm)	Width
	n/cm	n/inch					inch	40	54	57
	n/cm	n/inch					cm		136
PA-10GG	3.94	10	550	1990	61	237			●
PA-12GG	4.33	11	400	1820	67	153			●
PA-14GG	5.11	13	400	1600	64	170			●
PA-16GG	5.90	15	350	1317	62	156			●
PA-18GG	6.69	17	350	1180	59	170			●
PA-20GG	7.48	19	300	1023	60	144			●
PA-22GG	7.87	20	300	950	58	153			●
PA-24GG	8.66	22	300	850	56	163			●
PA-26GG	9.05	23	300	800	54	172			●
PA-28GG	10.62	27	250	705	54	140			●
PA-30GG	11.02	28	250	659	53	146			●
PA-32GG	11.41	29	250	610	51	153			●
PA-34GG	11.81	30	250	570	49	159			●
PA-36GG	12.59	32	250	530	47	166			●
PA-38GG	14.17	36	200	500	52	119			●
PA-40GG	14.56	37	200	486	50	123			●
PA-42GG	14.96	38	200	466	49	128			●
PA-44GG	16.14	41	200	425	46	136			●
PA-46GG	16.92	43	200	388	44	145			●
PA-48GG	17.71	45	200	364	42	148			●
PA-50GG	18.11	46	200	355	41	153			●
PA-52GG	20.47	52	150	338	48	98			●
PA-54GG	21.65	55	150	315	46	103			●
PA-58GG	22.04	56	150	300	44	105			●
PA-60GG	22.83	58	150	285	43	110			●
PA-62GG	23.62	60	150	273	42	112			●
PA-64GG	24.01	61	150	266	41	115			●
PA-66GG	28.34	72	100	252	51	61			●
PA-68GG	29.13	74	100	243	50	63			●
PA-70GG	29.52	75	100	238	48	64			●
PA-72GG	30.31	77	100	229	47	66			●
PA-74GG	31.88	81	100	213	46	69			●

Abrasion Resistance Nylon Filter Mesh Polyamide GG Flour Milling Mesh 136CM Width
